New 🤩 Zoom A1X Four Acoustic Instrument Multi-Effect Processor 🥰

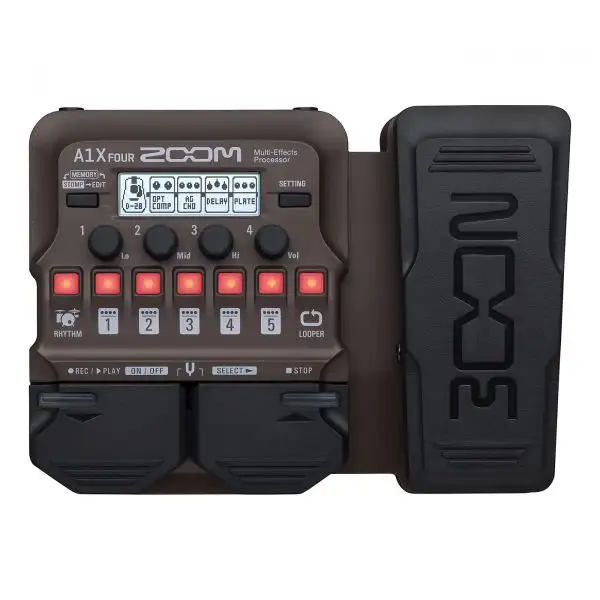

With specially engineered effects, built-in looper and drum machine, the Zoom A1X Four Acoustic Instrument Multi-Effect Processor is the first Multi-Effects Processor designed for a variety of acoustic string and wind instruments. The A1X Four comes preloaded with over 80 effects, including more than 35 new groundbreaking effects designed and engineered for acoustic instruments.

Add a multitude of warm and rich tones to your guitar. From live “unplugged” performance sounds to the finger-playing style of country and blues, there’s so much to choose from. Gorgeous effects and acoustic guitar modeling will take your instrument to places it’s never been before.

The A1X Four comes with 8 additional pedal-controlled effects to adjust volume, pitch, reverb, delay, and wah.

Acoustic Guitar Modeling

Add depth and dimension with acoustic emulators and modeling. Refresh your instrument’s natural sound, allowing your live performances to sound just like your studio recordings. Select and hone in on the tone of your favorite guitar make and style.

The A1X Four makes it easier than ever to process the sound of your own Acoustic Guitar. With a selection of 15 factory presets (plus 13 more available as free download on Guitar Lab), you can select your favorite AG MODEL, D-28 for example, and recover instantly the sound character of that renowned and original body shape.


IR (Impulse Response) technology is used to capture the sonic fingerprint all guitar shapes and bodies available on the A1X/A1XX FOUR and via Guitar Lab. Each AG MODEL can be adjusted with 4 parameters (Gain, Bass, Mid, Treble) to control the volume and refine the audio output of your modeled sound.

In Patches you can also set the AG Pickup Selector (AG PU SEL) to match your guitar’s pickup type (Piezo or Magnetic) and add a specific EQ modeled on a variety of dedicated processors.

Give Your Sax an Entirely New Soundscape

Perform that gritty, rock-and-roll sax growl. Or use the lush custom-chorus effect to emulate the sound of jazz fusion. The A1X/A1XX Four gives sax players a soundscape of possibilities. The all-new “SaxChorus” effect delivers a more natural double-track and thick tone response by softening the modulated sensation typical of a chorus designed for the electric guitar. With ready-made settings for EQ and Compressors your sax will preserve its acoustically warm sound, even when amplified through mics.

Take Your Trumpet Back to the Future

From the bright sound of electric jazz to the signature Auto Wah sound effect, the A1X gives you inspiration for any style you play. With the “Tp MD70” preset patch the Pedal Wah sound is tuned, resonates and adapts to the low frequency range and curve of the Trumpet.

Turn Your Violin Into an Orchestra

From the rich, full sound of a string symphony to the raw, distorted explosion of metal, the A1X/A1XX FOUR have effects for every genre.

More Body for Your Harmonica’s Soul

Play punchy, mid-range sounds of a blues harp, or experiment with your own new sounds. Breathing new life into your harmonica has never been so much fun.

Play through the preset patch “Hm StevieW” and get that famous harmonica sound as the chorus’s wet signal effect is modified to fit the frequency response of the chromatic harmonica.

The A1X even provides you with a truly effective simulation of the Bullet Mic, also known by harmonica players as the Green Bullet. Select the preset patch “Hm Juke” and now hear the legendary amplified, warm tone of the Green Bullet come to life, even when using any standard vocal microphone.

Take Your Upright Bass to New Heights

With focused highs and rich lows, the A1X/A1XX Four gives you control and flexibility from classical to rockabilly and all styles in between. Add octaves, select your piezo effect or create your own unique signature sound.

The Technology

Popular effects such as Distortion, Chorus and Wah are typically designed to work with the electric guitar. The A1X/A1XX FOUR provide all-new effects that are engineered to process the unique signals generated by acoustic instruments.

For example, with the sax and trumpet, original acoustic sounds are controlled by the musician blowing the horn with more or less intensity. As an example, the Wah effects are uniquely re-voiced in the A1X Four by adding a Low Pass Filter (LPF) to best control the processed frequency response of the instrument. This allows musicians to hit the peak frequency points while still blowing naturally into the instrument, without losing any expected sonic response of attack and release.

Another example is the violin. The bowing attack is key to the expression of the violinist. To recreate the electrified sensation of distortion without losing the bowing attack, the DIST effect for Violin shifts the clipping 1 octave higher, boosts the high frequency and reduces the lows. This creates a more balanced saturation that suits the sonic characteristics of the violin.

Effortlessly toggle between patches and effects with two performance modes. MEMORY mode makes it easy to program your entire setlist by jumping from patch-to-patch. Use STOMP mode to turn individual effects on and off with the tap of your foot.

The Anti-Feedback Filter detects and cuts frequencies that cause potential feedback.

The Perfect Partner

The Zoom MAA-1 mic adapter provides a hassle-free connection to the A1X Four. It works with dynamic microphones and even provides phantom power for condenser mics. Add effects to any acoustic instrument and adjust gain settings with the MAA-1’s easy-access controls.

Guitar Lab Supported

Features:

• Over 90 built-in effects
• Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
• Up to 5 effects can be used simultaneously, chained together in any order
• 50 memory locations for storing user-created patches
• Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
• ZOOM Guitar Lab software for creating, editing and managing effects and patches
• 68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
• Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
• Output jack for connection to amp or headphones
• Runs on 4 AA batteries, with alkaline battery life of 18 hours; MAA-1 Requires 2 AA batteries
• USB port for firmware updates, power and connection to ZOOM Guitar Lab
