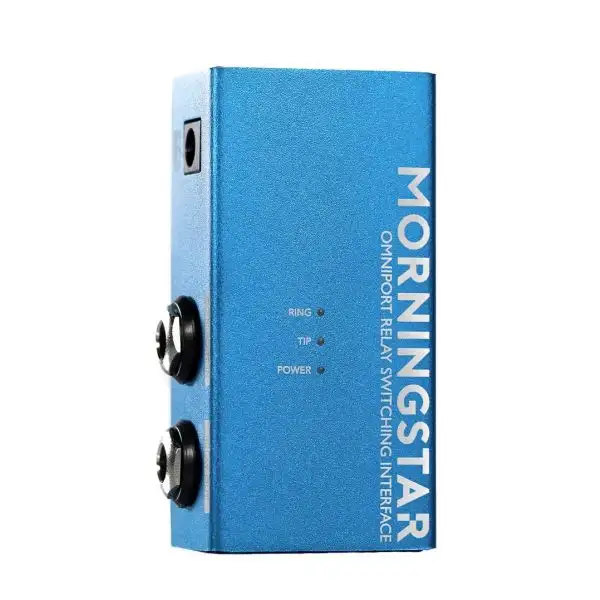

The Morningstar Engineering Relay Interface allows you to send relay switch signals with your Morningstar controller. All you need to do is attach the relay interface to one of your controller’s Omniports. Now you can control devices with relay switch inputs. Some such devices are: Guitar amps, Delay pedals with tap tempo inputs, Strymon pedals with Favorite switch inputs, and JHS pedals with Red Remote inputs.

THE CHOICE IS YOURS

You decide if the switch is normally open or normally closed per message sent from your Morningstar controller. This allows the relay interface to work with various devices even if each receiving device has different switching requirements.

CONTROL TIP, RING OR BOTH

Within each message, you can choose to control the Ring, Tip or Both.

MULTIPLE CONTROL OPTIONS

TAP (Normally Open) – Momentarily closes the relay and returns back to the open state

TAP (Normally Closed) – Momentarily opens the relay and returns back to the closed state

ENGAGE – Closes the relay

DISENGAGE – Opens the relay

TOGGLE – Alternates between closed and open states

TAKES UP ALMOST NO SPACE

FEATURES:

• Universal MIDI: Every Morningstar controller is compatible with any device that accepts MIDI, regardless of brand or model. This is made possible with the ability to send any type of MIDI message you need. As long as your device accepts MIDI, it will work perfectly together with the controllers
• Message Stacking: Send up to 16 different MIDI messages across 16 MIDI channels with each switch. This allows you to control up to 16 different devices with a single switch. Switches are also able to trigger each other so you can engage any preset you want from any switch across the 30 banks
• Message Types: Every switch your Morningstar controller is independently programmable. Choose to send various types of MIDI messages including PC, CC, Note, SysEx, MIDI Clock and many more
• Action Types: Send different groups of messages depending on what action you perform. Assignable actions include Press, Release, Double Tap, Long Press and more
• MIDI Clock: Keep your effects synced and locked in time with global MIDI Clock. You have the option to tap in a tempo on-the-fly or send pre-set BPM
• Dual-page Banks: Each of the 30 banks has 2 pages. By default, the first set of switch names are displayed on the screen. When you toggle page, the second set of switch names will be displayed. This effectively doubles the number of preset slots you have in each bank
• Connections: All Morningstar controllers​ can send MIDI via their 5-pin, TRS and USB ports. This gives you direct connectivity to any MIDI device, without the need for a break-out MIDI box or splitter. Aux/Expression inputs allow you to connect external switches and expression pedals to expand as you need
• Exp Pedal: Turn your expression pedal into a multi-function expression pedal with MIDI. This allows you to use a single expression pedal to control different parameters, all selectable on the fly. Expression pedal message types include Expression CC, Toe Down, Heel Down and Select Expression Message
• Song & Set Lists: Create song and set lists, and easily navigate through them using the Bank Jump feature. This allows you to use any switch to jump to any bank on your controller. On top of that, the preset/bank Copy, Paste and Swap functions make managing songs and set lists a breeze
• MIDI CC Waveforms: 4 independent MIDI Waveform Engines ​allow you to send continuous streams of CC messages. Choose from Saw, Triangle, Sine and Square wave shapes. Set your own minimum & maximum values, sync them to MIDI clock or have them independent. Automated modulation for your pedalboard is now a reality
• Device Editor: While you can program your switches on the controllers themselves, they also come with a free and intuitive Device Editor to make your editing even ​faster and easier
• MIDI Dictionary: Nobody likes reading manuals. That is why MorningStar created the MIDI Dictionary, containing all parameters, functions and MIDI specifications of the most popular MIDI devices. And embedded it into our Device Editor for maximum convenience
• Dimensions: 83mm x 41.5mm x 30mm
• Power Requirements: 9v DC centre negative (min 80mA)
• I/O: 1/4 inch TRS Omniport receive port, 1/4 inch TRS relay switch output
