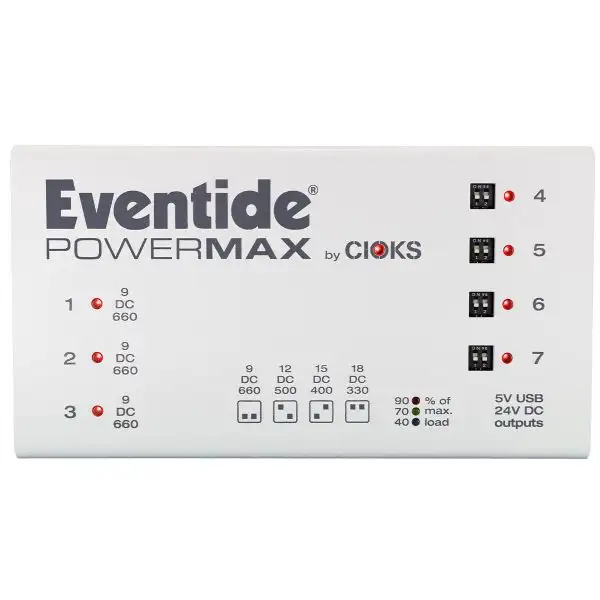

The Eventide PowerMAX Rev.2 sets the new standard for versatility and performance in a trim, light and easy to mount pedalboard power supply. PowerMaxβs state-of-the-art design ensures your pedals will achieve maximum fidelity. PowerMax can power up to 7 high current effect pedals and simultaneously charge your smartphone or tablet. Weighing only 1.1 lb and 1″ thick, itβs a fit companion to H9 or any other pedals that grace your pedalboard. Features a state-of-the-art universal power supply (85-265V) which can be used worldwide.
Included Flex Cables
- 1x 4030-L 5.5/2.5mm center positive angled DC plug, 30cm / 12β, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
- 2x 4050-L 5.5/2.5mm center positive angled DC plug, 50cm / 20β, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
- 2x 4080-L 5.5/2.5mm center positive angled DC plug, 80cm / 31β, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
- 3x 1030-L 5.5/2.1mm center negative angled DC plug, 30cm / 12β, black, type 1 (BOSS standard)
- 2x 1050-L 5.5/2.1mm center negative angled DC plug, 50cm / 20β, black, type 1 (BOSS standard)
- 1x 2050-L 5.5/2.1mm center positive angled DC plug, 50cm / 20β, red, type 2
- 1x 5050-L 3.5mm tip positive angled Jack plug, 50cm / 20β, black, type 5
- 1x 1035 Split Flex (Y-cable) with two 5.5/2.1mm center negative angled DC plugs, 30+50cm / 12+20β, black, type 1 (BOSS standard)
FEATURES:
- 24V DC Aux isolated outlet for PowerMini Expander (adding 4 additional outputs) or other high-power pedal
- 7 isolated DC-outlets at 6W each
- 3 outlets with 9V DC 660mA
- 4 outlets each selectable with either 9V, 12V, 15V, or 18V up to 660mA
- Powers multiple Eventide, Strymon and other high current pedals
- Smallest and lightest in its class – only 1″ thick and 1.1 lb
- USB outlet for charging a smartphone or tablet (max 1A)
- Use anywhere in the world, mains input voltage 90-265V AC
- Ultra-low noise achieved by multi-stage filtering
- Individual status LED on each outlet and global status LED
- State-of-the-art 2-stage switch-mode power supply topology
- Extremely low profile, only 25mm (1 inch) thick
- Mounting hardware for Pedaltrain and Temple boards included
- Built-in true power meter showing the total load
- 13 Flex cables included, 5 for Eventide pedals
- Designed in Denmark, assembled in Poland
