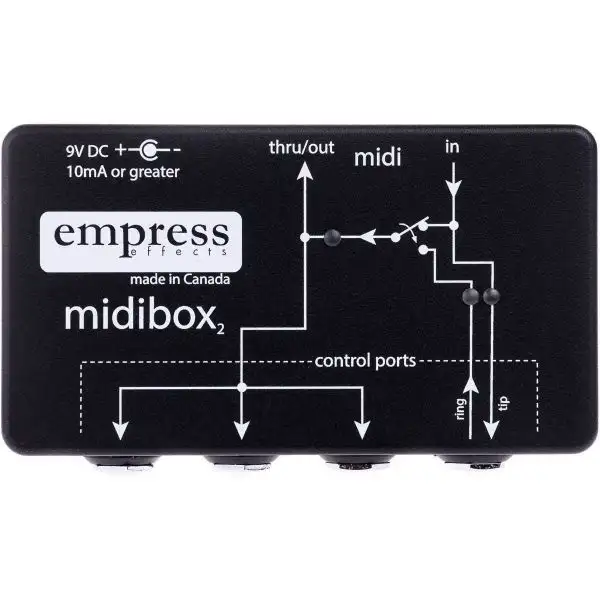

Features:
- Control Empress Pedals with MIDI – Use MIDI to control any Empress pedal equipped with a control port
- Control up to 4 pedals at once – 4 control port outputs allow you to control up to 4 Empress pedals simultaneously
- MIDI out – set the internal dip switch to accept midi out messages from the control port and relay them to the other control ports and the MIDI thru/out connector
- LED feedback – LEDs light up, letting you know when and where MIDI messages are being sent
Specifications:
- Power Input Voltage: 9 V DC
- Power Input Connector: 2.1mm barrel connector (negative tip)
- Power Consumption: ~30 mA
- Enclosure Material: Die Cast Aluminum
- Input connector: Standard 5 pin MIDI connector
- Output connector: 1/4″ jack
- Height: 1.25″
- Depth: 4.5″
- Width: 2.5″
- Weight: 0.5 lb
